EXEA

EM-175　USB Ports w/Voltmeter

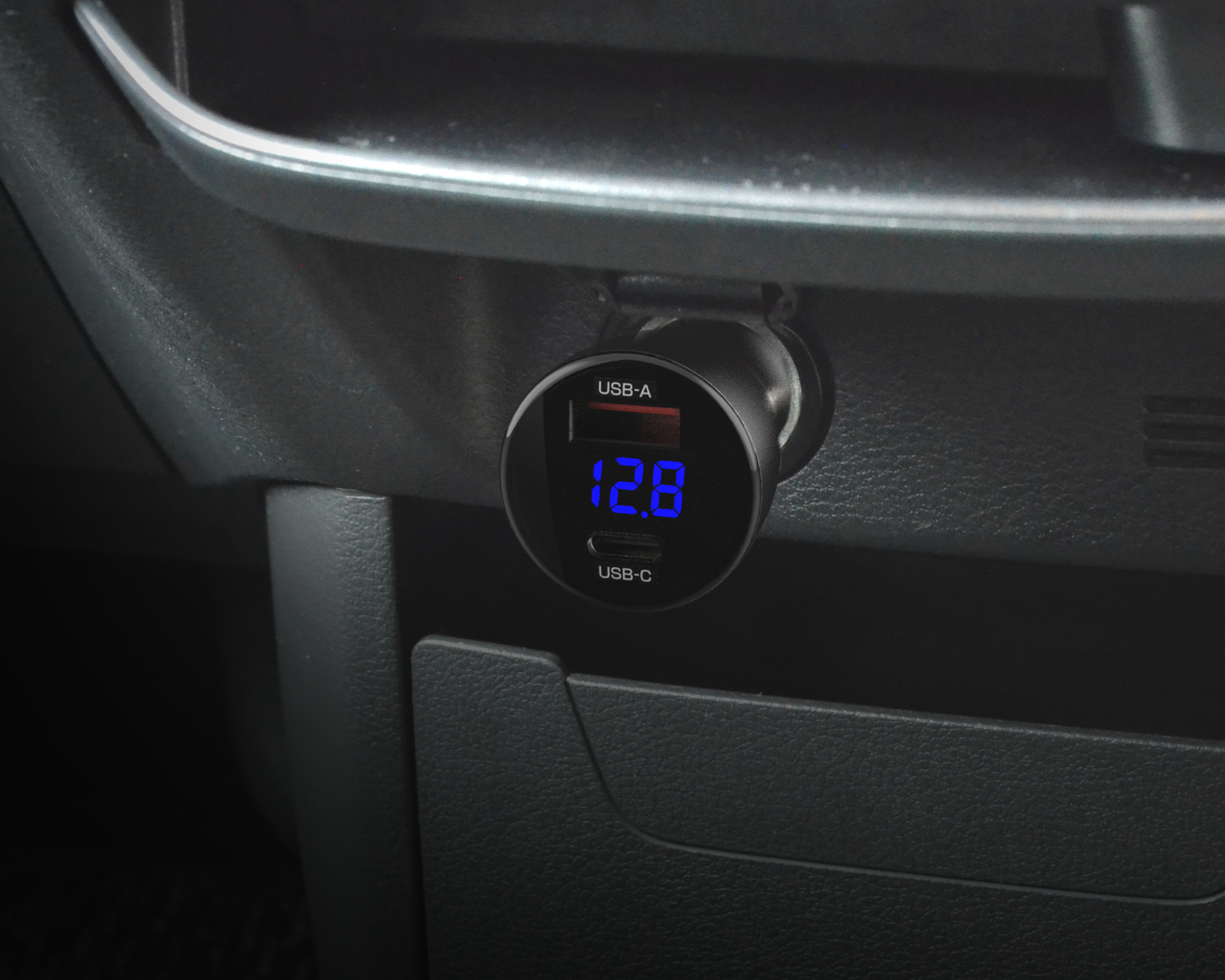

A USB charging plug that supports 12V/24V vehicles.
It is equipped with a voltage monitor and a USB-A port and a USB-C port for high-speed charging.
The USB-A (QC18W) and USB-C (PD20W) ports’ automatic detection feature automatically detects the connected devices to charge each device at a suitable charging current.
Independent control for each port enables simultaneous charging of different devices at their respective optimal charging conditions.
It features an aluminum body with excellent heat dissipation and robustness.
* Compatible with vehicles equipped with a power socket of an internal diameter from 21.0 mm to 22.5 mm (0.83 in. to 0.89 in.).

Open price
■Product dimensions: H 30 xW 30 xD 71 mm (H 1.18 xW 1.18 xD 2.80 inches)
■Package dimensions: H 180 xW 85 xD 70 mm 60 g (H 7.09 xW 3.35 xD 2.76 inches 2.11644 oz)
■Small box: H 200 xW 305 xD 245 mm (H 7.87 xW 12.01 xD 9.65 inches) 20 pack
■Large box: H 425 ｘW 500 ｘD 330 mm (H 16.73 xW 19.69 xD 12.99 inches) 80 pack
■ Ratings: Voltage/DC12,24V Maximum permissible power 38W USB-A alone QC: Maximum 18W Output voltage DC5V to DC12V (variable) / Output current max 3A (variable) USB-C alone PD: Maximum 20W
DC5V/3A, DC9V/2.22A, DC12V/1.67A USB-A + USB-C: Max 38W (when using 2 ports, QC/PD compatible)
■JAN： 4974267051753
